本文对标签分布学习的模型算法进行了代码实现，对整个LDL系列进行了一个总结。

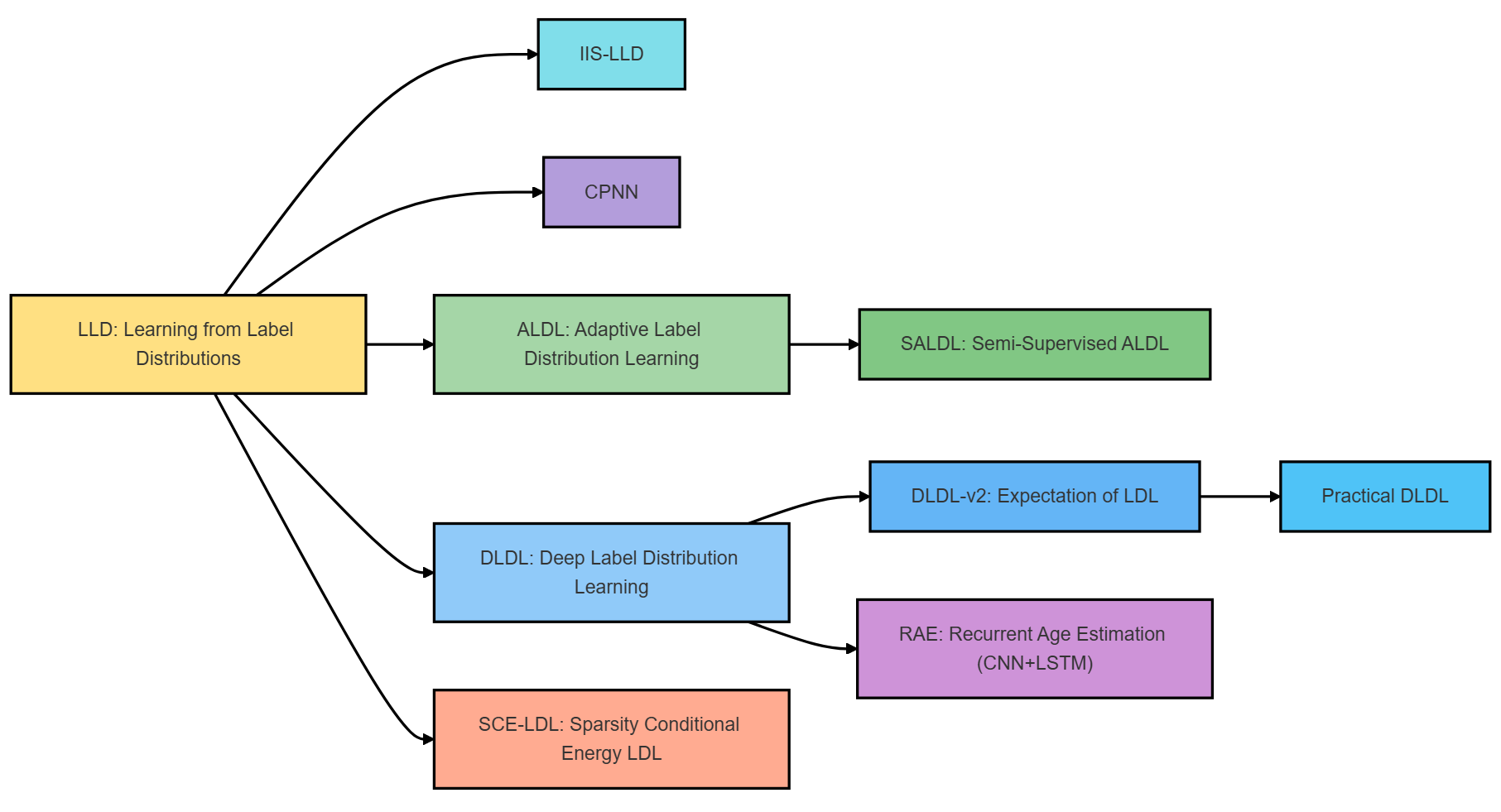

LDL面部年龄识别方法发展

LDL面部年龄识别系列方法以“年龄不是单点而是分布”为核心，将邻近年龄的描述度编码为标签分布，从而同时利用相邻年龄的相关性并缓解长尾稀缺（IIS-LLD）；在此基础上，ALDL按年龄阶段自适应调整分布宽度，契合儿童/老年变化快、中年变化慢的规律；当标注不足时，SALDL把自适应与半监督结合，引入未标注人脸以伪标签与分布迭代相互促进。深度化的DLDL把分布学习嵌入CNN，以KL作为训练目标；DLDL-v2进一步从理论上把Ranking视作学习c.d.f.的特例，并在同一网络中“分布学习+期望回归”联合优化以缩小训练–评测不一致，且在Morph/ChaLearn上以更少参数达成或刷新SOTA。分支工作如SCE-LDL以能量函数与稀疏约束提升分布表达能力；而序列化的RAE以CNN+LSTM建模同一身份的时间序列老化，适用于需要同一人的多张图像场景。LDL面部年龄识别系列发展方法脉络如下所示。

代码实现

本次代码实现围绕标签分布学习（Label Distribution Learning, LDL）在年龄估计任务中的若干内部变体展开，数据全部来自 MegaAge-Asian（数据集链接：https://aistudio.baidu.com/datasetdetail/45324）。由于官方仅提供 train 与 test 两个拆分，我们首先将两者汇合成一个样本池，统一执行“检测—对齐—清洗—特征化”的管线，再按 7:2:1 重新划分为 Train、Test、Val。Train 仅用于参数学习，Test 仅用于超参数选择与早停触发，Val 作为最终盲测集合只在最后一次性评估。为了减少随机性对对比结论的影响，划分在固定随机种子下生成，并将划分文件随代码一并固化，所有后续模型严格在同一份切分上训练与评测。

对齐与清洗阶段采用基于 5 点关键点的仿射对齐流程：先用稳定的人脸检测器拿到关键点，再将人脸规整到统一模板坐标系，输出对齐到定尺度的人脸图像。图像统一做 RGB 转换、[0,1] 归一化与 ImageNet 统计量标准化，训练时启用轻量随机翻转 / 颜色抖动 / 缩放裁剪，推理仅保留确定性归一化。无法稳定检测到人脸、或人脸框极小/严重遮挡的样本不做修复，直接丢弃并将文件名记录到失败清单；按该准则，最终剔除了两百余张异常样本，其余样本进入特征抽取环节。

特征抽取器选用 MiVOLO（GitHub：https://github.com/WildChlamydia/MiVOLO；论文：https://arxiv.org/abs/2307.04616），在本项目中仅作为“冻结的”向量化器使用，不做端到端微调。我们启用人脸与人体两路分支并在特征维上拼接，得到每张图 768 维的 embedding；为避免表征差异干扰 LDL 族内对比，后续的所有模型都只“吃向量不吃原图”。特征在 Train 上做 z-score 标准化（均值与方差在 Train 估计，并在 Test/Val 上复用），正式实验不做降维；虽然在调试阶段尝试过 PCA→256 维对速度有帮助，但为保证变量可控，报告中的比较一律保持 768 维输入。

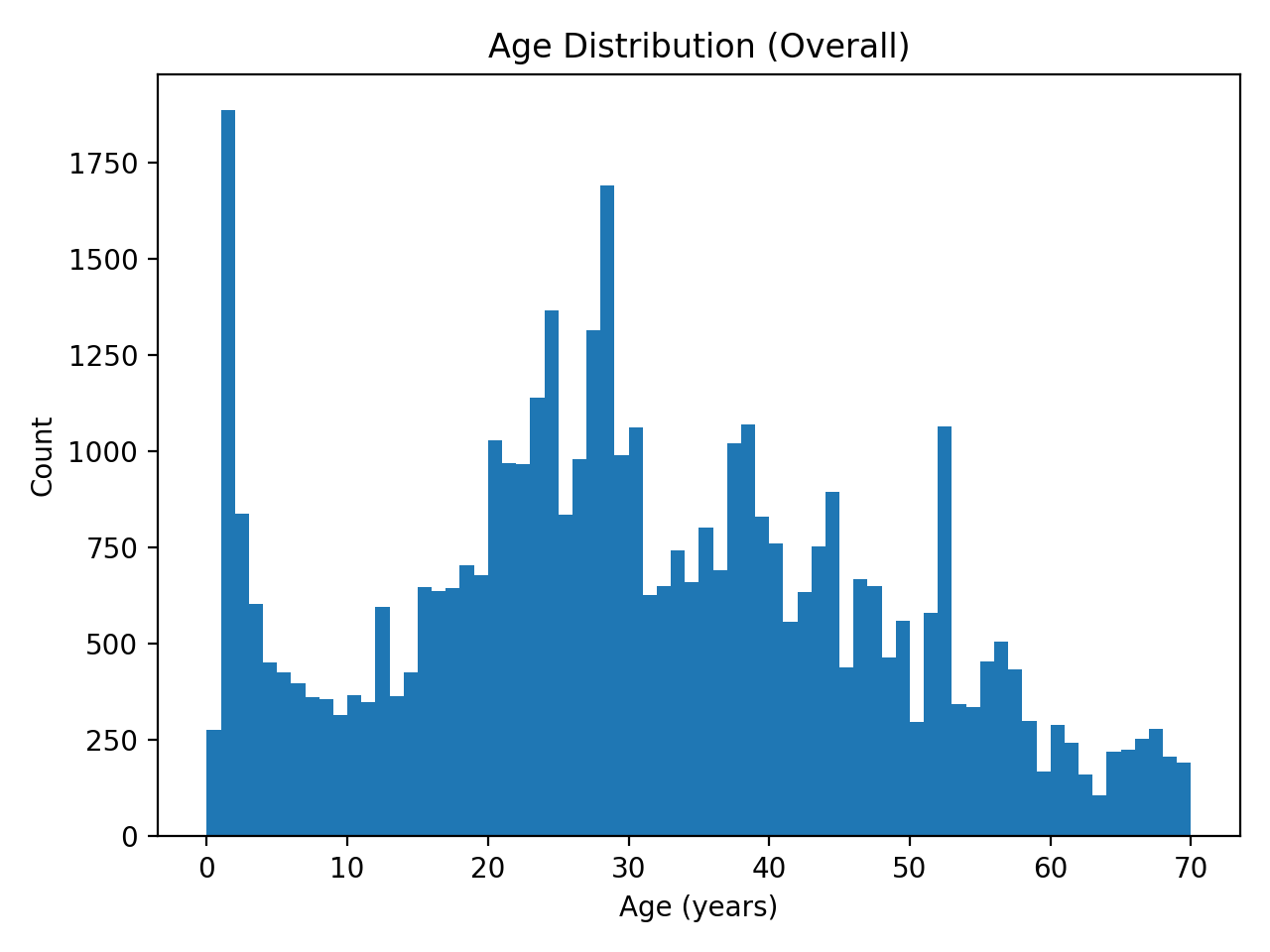

标签空间取闭区间 [0,70] 的整数年龄，并用高斯核把单值标签离散化为 71 维分布，σ∈{2,3,5} 作为可调超参数。模型输出同为 71 维分布，主损失采用分布级交叉熵 / KL 散度；部分变体叠加期望年龄的 L1 约束（将分布期望 E[y] 与真值做 MAE，系数 λ∈{0.5,1.0}），以提升数值可解释性。推理阶段统一以分布期望作为实值预测。优化器使用 AdamW，学习率在 {1e-3, 3e-4} 小网格搜索、权重衰减在 {0, 1e-4} 选择；批量大小依据显存与 AMP 配置在 128–256 之间取值。早停以 Test 上的主损失为监控量，patience 设为 3–5；每个变体选出最优超参数与最优 epoch 后，会用 Train+Test 合并重训定稿模型，最终仅在 Val 上计算 MAE 与 CS5 并固化报表。

LDL 族内的建模差异限定在“如何从 768 维向量映射到 71 维分布”与“如何构造/平滑监督分布”两个层面。CPNN 路线以多层感知机实现 768→71 的映射（例如 768→512→256→71，ReLU+Dropout，softmax 输出），主损失为分布交叉熵，选配 λ·MAE 的期望正则，用以考察网络深度与正则强度对稳定性的影响；DLDL-v2 保持相同的 768→…→71 头部，但目标分布固定为 σ-高斯软标签；Practical-DLDL 则在标签空间或样本邻域内进一步做平滑（如 k∈{3,5,7} 的邻域聚合），用于缓解离散标签噪声。整个项目不引入外部对比模型，仅在“相同特征、相同协议”下做 LDL 族内的有控制变量的比较，问题聚焦于“分布建模方式如何影响年龄估计”的实证结论，而非追求跨方法的绝对最优数值。

IIS-LLD将“单一真实年龄”替换为覆盖相邻年龄的标签分布，学习条件分布 p(y|x) 去贴近先验分布 D，通过最小化 KL(D‖p) 等价地最大化带软标签的对数似然来实现；原论文同时给出了 IIS-LLD 与 CPNN 两条路径，并给出高斯/三角等典型先验分布以体现“邻近年龄相似、距离越远权重越低”的原则。

在本项目里，我们用 MiVOLO 冻结特征得到 768 维向量，采用一层线性映射加 softmax 直接实现对数线性模型，输出 71 维年龄分布（0–70）；监督分布用离散高斯并网格 σ∈{2,3,5}，以 KL 作为主损失，推理时取期望作为预测值并以 MAE 与 CS(5)评估。实践经验表明高斯分布通常优于三角，且分布过窄或过宽都会恶化性能，因此 σ 需要在开发集上择优。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

def gaussian_label_distribution(y: int, num_classes: int = 71, sigma: float = 3.0):
    xs = np.arange(num_classes, dtype=np.float32)
    w = np.exp(-0.5 * ((xs - y) / sigma) ** 2)
    w /= w.sum() + 1e-12
    return w.astype(np.float32)

class LDLSet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray, num_classes=71, sigma=3.0):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
        self.D = np.stack([gaussian_label_distribution(int(t), num_classes, sigma) for t in y]).astype(np.float32)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), torch.from_numpy(self.D[i]), int(self.y[i])

class LinearLDL(nn.Module):
    # p(y|x) = softmax(Wx + b)
    def __init__(self, in_dim=768, num_classes=71):
        super().__init__()
        self.fc = nn.Linear(in_dim, num_classes)
    def forward(self, x):
        return self.fc(x)  # logits

@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    sigma: float = 3.0
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 50
    patience: int = 4
    device: str = "cuda" if torch.cuda.is_available() else "cpu"

def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = LDLSet(Xtr, ytr, cfg.num_classes, cfg.sigma)
    te = LDLSet(Xte, yte, cfg.num_classes, cfg.sigma)  # used as dev for early stop
    va = LDLSet(Xva, yva, cfg.num_classes, cfg.sigma)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

@torch.no_grad()
def evaluate(model, loader, cfg: CFG):
    model.eval()
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    total, loss_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0
    for x, d, y in loader:
        x, d = x.to(cfg.device), d.to(cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)
        loss = F.kl_div(logp, d, reduction="batchmean")  # KL(target||pred)
        p = logp.exp()
        yhat = (p * bins.unsqueeze(0)).sum(1)
        mae = (yhat - torch.tensor(y, dtype=torch.float32, device=cfg.device)).abs()
        cs5 = (mae <= 5.0).float()
        bsz = x.size(0)
        total += bsz
        loss_sum += loss.item() * bsz
        mae_sum  += mae.sum().item()
        cs5_sum  += cs5.sum().item()
    return loss_sum/total, mae_sum/total, cs5_sum/total

def train_iis_ldl(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = LinearLDL(cfg.in_dim, cfg.num_classes).to(cfg.device)
    opt = torch.optim.AdamW(model.parameters(), lr=cfg.lr, weight_decay=cfg.weight_decay)
    best_loss, best_state, no_improve = float("inf"), None, 0

    for epoch in range(1, cfg.max_epochs + 1):
        model.train()
        for x, d, _ in tr_loader:
            x, d = x.to(cfg.device), d.to(cfg.device)
            logp = F.log_softmax(model(x), dim=1)
            loss = F.kl_div(logp, d, reduction="batchmean")
            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        te_loss, te_mae, te_cs5 = evaluate(model, te_loader, cfg)
        print(f"[{epoch:02d}] dev KL={te_loss:.4f}  MAE={te_mae:.3f}  CS5={te_cs5:.3f}")
        if te_loss + 1e-6 < best_loss:
            best_loss, best_state, no_improve = te_loss, {k:v.detach().cpu().clone() for k,v in model.state_dict().items()}, 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state)
    val_loss, val_mae, val_cs5 = evaluate(model, va_loader, cfg)
    print(f"[VAL] KL={val_loss:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    return model

CPNN将标签分布学习用多层感知机来实现，把输入向量映射到年龄标签空间的概率分布，并用 KL(D‖p) 让输出分布逼近由真实年龄离散化得到的先验分布。相较线性对数模型，CPNN通过非线性层与丢弃正则提升表征能力，能够在保持“邻近年龄相似”的软监督假设下，更充分地拟合复杂特征与标签分布之间的关系，同时保留以分布期望作为最终实值预测的推理方式。

在本项目中，我们继续使用 MiVOLO 冻结特征得到的 768 维 embedding，采用 768→512→256→71 的 MLP 头部（ReLU+Dropout，末层 softmax）输出 71 维年龄分布。监督分布仍用离散高斯，σ 从 {2,3,5} 网格选取；主损失为 KL，另可选叠加 λ·MAE 的期望一致性正则（将输出分布的期望与真值做 L1），以提升数值可解释性与稳定性。训练与早停完全沿用前述协议，评估指标为 MAE 与 CS(5)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

# ---------- target distribution ----------
def gaussian_label_distribution(y: int, num_classes: int = 71, sigma: float = 3.0):
    xs = np.arange(num_classes, dtype=np.float32)
    w = np.exp(-0.5 * ((xs - y) / sigma) ** 2)
    w /= w.sum() + 1e-12
    return w.astype(np.float32)

# ---------- dataset ----------
class LDLSet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray, num_classes=71, sigma=3.0):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
        self.D = np.stack([gaussian_label_distribution(int(t), num_classes, sigma) for t in y]).astype(np.float32)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), torch.from_numpy(self.D[i]), int(self.y[i])

# ---------- model ----------
class CPNN(nn.Module):
    # 768 -> 512 -> 256 -> 71, ReLU + Dropout, softmax at loss
    def __init__(self, in_dim=768, num_classes=71, pdrop=0.2):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(in_dim, 512),
            nn.ReLU(inplace=True),
            nn.Dropout(pdrop),
            nn.Linear(512, 256),
            nn.ReLU(inplace=True),
            nn.Dropout(pdrop),
            nn.Linear(256, num_classes),
        )
    def forward(self, x):
        return self.net(x)  # logits

# ---------- config ----------
@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    sigma: float = 3.0
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 60
    patience: int = 5
    device: str = "cuda" if torch.cuda.is_available() else "cpu"
    pdrop: float = 0.2
    lambda_expect: float = 0.0  # set to 0.5 or 1.0 to enable expectation L1 regularizer

# ---------- loaders ----------
def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = LDLSet(Xtr, ytr, cfg.num_classes, cfg.sigma)
    te = LDLSet(Xte, yte, cfg.num_classes, cfg.sigma)
    va = LDLSet(Xva, yva, cfg.num_classes, cfg.sigma)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

# ---------- evaluation ----------
@torch.no_grad()
def evaluate(model, loader, cfg: CFG):
    model.eval()
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    total, loss_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0
    for x, d, y in loader:
        x, d = x.to(cfg.device), d.to(cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)
        loss = F.kl_div(logp, d, reduction="batchmean")
        p = logp.exp()
        yhat = (p * bins.unsqueeze(0)).sum(1)
        mae = (yhat - torch.tensor(y, dtype=torch.float32, device=cfg.device)).abs()
        cs5 = (mae <= 5.0).float()
        bsz = x.size(0)
        total += bsz
        loss_sum += loss.item() * bsz
        mae_sum  += mae.sum().item()
        cs5_sum  += cs5.sum().item()
    return loss_sum/total, mae_sum/total, cs5_sum/total

# ---------- training ----------
def train_cpnn(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = CPNN(cfg.in_dim, cfg.num_classes, cfg.pdrop).to(cfg.device)
    opt = torch.optim.AdamW(model.parameters(), lr=cfg.lr, weight_decay=cfg.weight_decay)

    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    best_loss, best_state, no_improve = float("inf"), None, 0

    for epoch in range(1, cfg.max_epochs + 1):
        model.train()
        for x, d, y in tr_loader:
            x, d = x.to(cfg.device), d.to(cfg.device)
            logits = model(x)
            logp = F.log_softmax(logits, dim=1)
            kl = F.kl_div(logp, d, reduction="batchmean")

            loss = kl
            if cfg.lambda_expect > 0.0:
                with torch.no_grad():
                    y_true = torch.tensor(y, dtype=torch.float32, device=cfg.device)
                p = logp.exp()
                yhat = (p * bins.unsqueeze(0)).sum(1)
                loss = loss + cfg.lambda_expect * (yhat - y_true).abs().mean()

            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        te_loss, te_mae, te_cs5 = evaluate(model, te_loader, cfg)
        print(f"[{epoch:02d}] dev KL={te_loss:.4f}  MAE={te_mae:.3f}  CS5={te_cs5:.3f}")
        if te_loss + 1e-6 < best_loss:
            best_loss, best_state, no_improve = te_loss, {k:v.detach().cpu().clone() for k,v in model.state_dict().items()}, 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state)
    val_loss, val_mae, val_cs5 = evaluate(model, va_loader, cfg)
    print(f"[VAL] KL={val_loss:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    return model

# Example:
# paths = {"X_train":"X_train.npy","y_train":"y_train.npy",
#          "X_test":"X_test.npy","y_test":"y_test.npy",
#          "X_val":"X_val.npy","y_val":"y_val.npy"}
# model = train_cpnn(paths, CFG(sigma=3.0, lambda_expect=0.5))

DLDL将真实年龄离散化为固定形状的标签分布（常用高斯或三角），用 KL(D‖p) 训练网络直接拟合整条分布，推理阶段以输出分布的期望作为实值预测。相较把年龄当作单点回归，DLDL显式编码了“邻近年龄更相似”的先验；相较 IIS-LLD/CPNN 的差别主要在“训练目标固定为某一形状的软标签分布”，不额外引入期望一致性或自适应分布等正则项。

在本项目里，我们继续采用 MiVOLO 冻结得到的 768 维向量作为输入，使用 768→512→71 的 MLP 头部输出 71 维年龄分布，监督分布取离散高斯并在 σ∈{2,3,5} 上网格搜索，主损失为 KL，早停依据开发集上的 KL。评估指标为 MAE 与 CS(5)，该实现对应“纯 DLDL”版本，不包含期望 L1（这会在后续的 DLDL-v2 中加入）。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

# ----- target distribution -----
def gaussian_label_distribution(y: int, num_classes: int = 71, sigma: float = 3.0):
    xs = np.arange(num_classes, dtype=np.float32)
    w = np.exp(-0.5 * ((xs - y) / sigma) ** 2)
    w /= w.sum() + 1e-12
    return w.astype(np.float32)

# ----- dataset -----
class LDLSet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray, num_classes=71, sigma=3.0):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
        self.D = np.stack([gaussian_label_distribution(int(t), num_classes, sigma) for t in y]).astype(np.float32)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), torch.from_numpy(self.D[i]), int(self.y[i])

# ----- model (DLDL head) -----
class DLDLHead(nn.Module):
    # 768 -> 512 -> 71, ReLU + Dropout, softmax is applied in loss
    def __init__(self, in_dim=768, num_classes=71, pdrop=0.1):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(in_dim, 512),
            nn.ReLU(inplace=True),
            nn.Dropout(pdrop),
            nn.Linear(512, num_classes),
        )
    def forward(self, x):
        return self.net(x)  # logits

# ----- config -----
@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    sigma: float = 3.0
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 60
    patience: int = 5
    device: str = "cuda" if torch.cuda.is_available() else "cpu"
    pdrop: float = 0.1

# ----- loaders -----
def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = LDLSet(Xtr, ytr, cfg.num_classes, cfg.sigma)
    te = LDLSet(Xte, yte, cfg.num_classes, cfg.sigma)  # dev for early stop
    va = LDLSet(Xva, yva, cfg.num_classes, cfg.sigma)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

# ----- evaluation -----
@torch.no_grad()
def evaluate(model, loader, cfg: CFG):
    model.eval()
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    total, loss_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0
    for x, d, y in loader:
        x, d = x.to(cfg.device), d.to(cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)
        loss = F.kl_div(logp, d, reduction="batchmean")  # KL(target||pred)
        p = logp.exp()
        yhat = (p * bins.unsqueeze(0)).sum(1)
        mae = (yhat - torch.tensor(y, dtype=torch.float32, device=cfg.device)).abs()
        cs5 = (mae <= 5.0).float()
        bsz = x.size(0)
        total += bsz
        loss_sum += loss.item() * bsz
        mae_sum  += mae.sum().item()
        cs5_sum  += cs5.sum().item()
    return loss_sum/total, mae_sum/total, cs5_sum/total

# ----- training -----
def train_dldl(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = DLDLHead(cfg.in_dim, cfg.num_classes, cfg.pdrop).to(cfg.device)
    opt = torch.optim.AdamW(model.parameters(), lr=cfg.lr, weight_decay=cfg.weight_decay)

    best_loss, best_state, no_improve = float("inf"), None, 0
    for epoch in range(1, cfg.max_epochs + 1):
        model.train()
        for x, d, _ in tr_loader:
            x, d = x.to(cfg.device), d.to(cfg.device)
            logits = model(x)
            logp = F.log_softmax(logits, dim=1)
            loss = F.kl_div(logp, d, reduction="batchmean")
            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        te_loss, te_mae, te_cs5 = evaluate(model, te_loader, cfg)
        print(f"[{epoch:02d}] dev KL={te_loss:.4f}  MAE={te_mae:.3f}  CS5={te_cs5:.3f}")
        if te_loss + 1e-6 < best_loss:
            best_loss, best_state, no_improve = te_loss, {k:v.detach().cpu().clone() for k,v in model.state_dict().items()}, 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state)
    val_loss, val_mae, val_cs5 = evaluate(model, va_loader, cfg)
    print(f"[VAL] KL={val_loss:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    return model

# Example:
# paths = {"X_train":"X_train.npy","y_train":"y_train.npy",
#          "X_test":"X_test.npy","y_test":"y_test.npy",
#          "X_val":"X_val.npy","y_val":"y_val.npy"}
# model = train_dldl(paths, CFG(sigma=3.0))

DLDL-v2在固定形状的标签分布监督（如高斯/三角）的基础上，将“分布拟合”的KL项与“期望一致性”的L1项联合优化：在最小化 KL(D‖p) 的同时，约束输出分布的期望 E[p] 接近真实年龄 y（用 |E[p]−y| 表达）。这样做一方面保留了邻近年龄相似性的软监督，另一方面把训练目标与评价指标（MAE）对齐，避免仅用分布匹配时对数值误差不敏感的问题。推理仍取期望作为实值预测。

在本项目中延续向量输入与统一协议：输入为 MiVOLO 冻结得到的 768 维 embedding，使用 768→512→71 的 MLP 头部输出年龄分布；监督分布采用离散高斯并在 σ∈{2,3,5} 上网格，联合损失为 KL + λ·MAEexp，其中 MAEexp=|E[p]−y| 的批均值，λ 可取 {0.5,1.0} 并在开发集上选择。早停依据开发集上的联合目标，最终以 MAE 与 CS(5) 报告性能。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

# ----- target distribution -----
def gaussian_label_distribution(y: int, num_classes: int = 71, sigma: float = 3.0):
    xs = np.arange(num_classes, dtype=np.float32)
    w = np.exp(-0.5 * ((xs - y) / sigma) ** 2)
    w /= w.sum() + 1e-12
    return w.astype(np.float32)

# ----- dataset -----
class LDLSet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray, num_classes=71, sigma=3.0):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
        self.D = np.stack([gaussian_label_distribution(int(t), num_classes, sigma) for t in y]).astype(np.float32)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), torch.from_numpy(self.D[i]), int(self.y[i])

# ----- model (DLDL-v2 head) -----
class DLDL2Head(nn.Module):
    # 768 -> 512 -> 71, ReLU + Dropout; softmax is applied in loss
    def __init__(self, in_dim=768, num_classes=71, pdrop=0.1):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(in_dim, 512),
            nn.ReLU(inplace=True),
            nn.Dropout(pdrop),
            nn.Linear(512, num_classes),
        )
    def forward(self, x):
        return self.net(x)  # logits

# ----- config -----
@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    sigma: float = 3.0
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 60
    patience: int = 5
    device: str = "cuda" if torch.cuda.is_available() else "cpu"
    pdrop: float = 0.1
    lambda_expect: float = 0.5  # expectation consistency weight (0.5 or 1.0)

# ----- loaders -----
def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = LDLSet(Xtr, ytr, cfg.num_classes, cfg.sigma)
    te = LDLSet(Xte, yte, cfg.num_classes, cfg.sigma)  # dev for early stop
    va = LDLSet(Xva, yva, cfg.num_classes, cfg.sigma)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

# ----- evaluation (uses the same joint objective) -----
@torch.no_grad()
def evaluate(model, loader, cfg: CFG):
    model.eval()
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    total, loss_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0
    for x, d, y in loader:
        x, d = x.to(cfg.device), d.to(cfg.device)
        y_true = torch.tensor(y, dtype=torch.float32, device=cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)
        p = logp.exp()
        kl = F.kl_div(logp, d, reduction="batchmean")
        yhat = (p * bins.unsqueeze(0)).sum(1)
        mae = (yhat - y_true).abs().mean()
        loss = kl + cfg.lambda_expect * mae

        cs5 = (yhat - y_true).abs() <= 5.0
        bsz = x.size(0)
        total += bsz
        loss_sum += loss.item() * bsz
        mae_sum  += (yhat - y_true).abs().sum().item()
        cs5_sum  += cs5.float().sum().item()
    return loss_sum/total, mae_sum/total, cs5_sum/total

# ----- training -----
def train_dldl_v2(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = DLDL2Head(cfg.in_dim, cfg.num_classes, cfg.pdrop).to(cfg.device)
    opt = torch.optim.AdamW(model.parameters(), lr=cfg.lr, weight_decay=cfg.weight_decay)

    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    best_obj, best_state, no_improve = float("inf"), None, 0

    for epoch in range(1, cfg.max_epochs + 1):
        model.train()
        for x, d, y in tr_loader:
            x, d = x.to(cfg.device), d.to(cfg.device)
            y_true = torch.tensor(y, dtype=torch.float32, device=cfg.device)
            logits = model(x)
            logp = F.log_softmax(logits, dim=1)
            p = logp.exp()

            kl = F.kl_div(logp, d, reduction="batchmean")
            yhat = (p * bins.unsqueeze(0)).sum(1)
            mae_exp = (yhat - y_true).abs().mean()
            loss = kl + cfg.lambda_expect * mae_exp

            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        dev_obj, dev_mae, dev_cs5 = evaluate(model, te_loader, cfg)
        print(f"[{epoch:02d}] dev objective={dev_obj:.4f}  MAE={dev_mae:.3f}  CS5={dev_cs5:.3f}")
        if dev_obj + 1e-6 < best_obj:
            best_obj, best_state, no_improve = dev_obj, {k:v.detach().cpu().clone() for k,v in model.state_dict().items()}, 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state)
    val_obj, val_mae, val_cs5 = evaluate(model, va_loader, cfg)
    print(f"[VAL] objective={val_obj:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    return model

# Example:
# paths = {"X_train":"X_train.npy","y_train":"y_train.npy",
#          "X_test":"X_test.npy","y_test":"y_test.npy",
#          "X_val":"X_val.npy","y_val":"y_val.npy"}
# model = train_dldl_v2(paths, CFG(sigma=3.0, lambda_expect=0.5))

Practical-DLDL在固定形状软标签的基础上强调“只在合理邻域内分配概率”，将监督分布截断到 [y−k, y+k] 的局部窗口并在其中重新归一化，远离真值的尾部直接置零，以降低噪声与长尾对训练的干扰。窗口内的形状可以是高斯、三角或平顶，分别对应“中心更高、边缘更低”的连续先验、“线性衰减”的简单先验，以及“窗口内等权”的最稳健先验；经验上 k 取 3/5/7 较常见，可在开发集用网格选择。

在本项目中我们延续向量输入与统一协议：输入为 MiVOLO 冻结得到的 768 维 embedding，头部采用 768→512→71 的 MLP 输出分布，主损失为 KL。监督分布由形状 shape∈{gaussian, triangular, flat} 与窗口宽度 k 控制，其中 gaussian 还可设置 σ（先算全局高斯再按窗口截断并归一化）。训练沿用早停，评估以 MAE 与 CS(5)，推理取分布期望作为年龄预测。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

# ----- target distributions with window truncation -----
def gaussian_truncated(y: int, num_classes: int, sigma: float, k: int):
    xs = np.arange(num_classes, dtype=np.float32)
    w = np.exp(-0.5 * ((xs - y) / sigma) ** 2)
    if k is not None and k >= 0:
        mask = (xs >= y - k) & (xs <= y + k)
        w = w * mask.astype(np.float32)
    s = w.sum()
    w = w / (s + 1e-12)
    return w.astype(np.float32)

def triangular_window(y: int, num_classes: int, k: int):
    xs = np.arange(num_classes, dtype=np.float32)
    # height linearly decays to 0 at distance k; when k=0 this is one-hot
    w = np.maximum(0.0, (k + 1) - np.abs(xs - y))
    s = w.sum()
    w = w / (s + 1e-12)
    return w.astype(np.float32)

def flat_window(y: int, num_classes: int, k: int):
    xs = np.arange(num_classes, dtype=np.float32)
    w = ((xs >= y - k) & (xs <= y + k)).astype(np.float32)
    s = w.sum()
    w = w / (s + 1e-12)
    return w.astype(np.float32)

def build_target(y: int, num_classes: int, shape: str, k: int, sigma: float):
    if shape == "gaussian":
        return gaussian_truncated(y, num_classes, sigma, k)
    elif shape == "triangular":
        return triangular_window(y, num_classes, k)
    elif shape == "flat":
        return flat_window(y, num_classes, k)
    else:
        raise ValueError(f"Unknown shape: {shape}")

# ----- dataset -----
class LDLSet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray, num_classes=71, shape="gaussian", k=5, sigma=3.0):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
        self.num_classes, self.shape, self.k, self.sigma = num_classes, shape, k, sigma
        self.D = np.stack([build_target(int(t), num_classes, shape, k, sigma) for t in y]).astype(np.float32)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), torch.from_numpy(self.D[i]), int(self.y[i])

# ----- model (Practical-DLDL head) -----
class PracticalDLDLHead(nn.Module):
    # 768 -> 512 -> 71, ReLU + Dropout; softmax applied in loss
    def __init__(self, in_dim=768, num_classes=71, pdrop=0.1):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(in_dim, 512),
            nn.ReLU(inplace=True),
            nn.Dropout(pdrop),
            nn.Linear(512, num_classes),
        )
    def forward(self, x):
        return self.net(x)  # logits

# ----- config -----
@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    shape: str = "gaussian"   # "gaussian" | "triangular" | "flat"
    k: int = 5                # window half-width
    sigma: float = 3.0        # only used when shape == "gaussian"
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 60
    patience: int = 5
    device: str = "cuda" if torch.cuda.is_available() else "cpu"
    pdrop: float = 0.1

# ----- loaders -----
def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = LDLSet(Xtr, ytr, cfg.num_classes, cfg.shape, cfg.k, cfg.sigma)
    te = LDLSet(Xte, yte, cfg.num_classes, cfg.shape, cfg.k, cfg.sigma)  # dev for early stop
    va = LDLSet(Xva, yva, cfg.num_classes, cfg.shape, cfg.k, cfg.sigma)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

# ----- evaluation -----
@torch.no_grad()
def evaluate(model, loader, cfg: CFG):
    model.eval()
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    total, loss_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0
    for x, d, y in loader:
        x, d = x.to(cfg.device), d.to(cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)
        loss = F.kl_div(logp, d, reduction="batchmean")
        p = logp.exp()
        yhat = (p * bins.unsqueeze(0)).sum(1)
        y_true = torch.tensor(y, dtype=torch.float32, device=cfg.device)
        mae = (yhat - y_true).abs()
        cs5 = (mae <= 5.0).float()
        bsz = x.size(0)
        total += bsz
        loss_sum += loss.item() * bsz
        mae_sum  += mae.sum().item()
        cs5_sum  += cs5.sum().item()
    return loss_sum/total, mae_sum/total, cs5_sum/total

# ----- training -----
def train_practical_dldl(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = PracticalDLDLHead(cfg.in_dim, cfg.num_classes, cfg.pdrop).to(cfg.device)
    opt = torch.optim.AdamW(model.parameters(), lr=cfg.lr, weight_decay=cfg.weight_decay)

    best_loss, best_state, no_improve = float("inf"), None, 0
    for epoch in range(1, cfg.max_epochs + 1):
        model.train()
        for x, d, _ in tr_loader:
            x, d = x.to(cfg.device), d.to(cfg.device)
            logp = F.log_softmax(model(x), dim=1)
            loss = F.kl_div(logp, d, reduction="batchmean")
            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        te_loss, te_mae, te_cs5 = evaluate(model, te_loader, cfg)
        print(f"[{epoch:02d}] dev KL={te_loss:.4f}  MAE={te_mae:.3f}  CS5={te_cs5:.3f}")
        if te_loss + 1e-6 < best_loss:
            best_loss, best_state, no_improve = te_loss, {k:v.detach().cpu().clone() for k,v in model.state_dict().items()}, 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state)
    val_loss, val_mae, val_cs5 = evaluate(model, va_loader, cfg)
    print(f"[VAL] KL={val_loss:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    return model

# Example:
# paths = {"X_train":"X_train.npy","y_train":"y_train.npy",
#          "X_test":"X_test.npy","y_test":"y_test.npy",
#          "X_val":"X_val.npy","y_val":"y_val.npy"}
# model = train_practical_dldl(paths, CFG(shape="gaussian", k=5, sigma=3.0))
# # Try other shapes:
# # model = train_practical_dldl(paths, CFG(shape="triangular", k=5))
# # model = train_practical_dldl(paths, CFG(shape="flat", k=5))

ALDL将固定形状的软标签改为可学习的标签分布宽度，让每个年龄 a 都拥有自己的可学习σ(a)，用它在真值附近生成目标分布，再与网络输出分布做匹配；这样儿童或高龄段可以自动学到更尖锐或更平缓的监督，缓解“统一σ不适配所有年龄段”的问题。实现上不必复刻原论文的迭代缩放，只要把 σ(a) 作为可训练参数，按当前 σ(a) 动态构造目标分布，用交叉熵或 KL 共同训练即可；同时给 σ(a) 加总变差/平滑正则，避免相邻年龄的宽度震荡。

在本项目里仍采用 MiVOLO 冻结得到的 768 维向量输入，头部为 768→512→71 的 MLP 输出分布；每次前向根据样本真值 y_i 取 σ(y_i) 构造离散高斯目标分布，训练目标为分布交叉熵加上 σ 的平滑与幅度正则，早停以开发集目标为准，推理取分布期望做年龄预测并以 MAE 与 CS(5)评估。下面给出最小可复现代码，其中 σ 向量通过 softplus 保证正值，λ_tv 控制相邻年龄 σ 的平滑，λ_l2 控制 σ 的整体幅度。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
import math
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

# ----- dataset (no precomputed targets; targets depend on learnable σ) -----
class AgeOnlySet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), int(self.y[i])

# ----- model head -----
class MLPHead(nn.Module):
    # 768 -> 512 -> 71, ReLU + Dropout; softmax is applied in loss
    def __init__(self, in_dim=768, num_classes=71, pdrop=0.1):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(in_dim, 512),
            nn.ReLU(inplace=True),
            nn.Dropout(pdrop),
            nn.Linear(512, num_classes),
        )
    def forward(self, x): return self.net(x)  # logits

# ----- adaptive sigma parameterization -----
class SigmaBank(nn.Module):
    # per-age sigma(a), positive via softplus
    def __init__(self, num_classes=71, sigma_init=3.0, sigma_min=0.3):
        super().__init__()
        # softplus^{-1}(s - sigma_min) for init
        init_raw = math.log(math.exp(max(sigma_init - sigma_min, 1e-3)) - 1.0)
        self.sigma_raw = nn.Parameter(torch.full((num_classes,), init_raw, dtype=torch.float32))
        self.sigma_min = float(sigma_min)

    def forward(self):
        # σ(a) = softplus(raw) + sigma_min
        return F.softplus(self.sigma_raw) + self.sigma_min  # shape [C]

# ----- config -----
@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    sigma_init: float = 3.0
    sigma_min: float = 0.3
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 60
    patience: int = 5
    device: str = "cuda" if torch.cuda.is_available() else "cpu"
    pdrop: float = 0.1
    lambda_tv: float = 1e-3     # smooth σ across ages
    lambda_l2: float = 1e-4     # keep σ magnitude reasonable

# ----- loaders -----
def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = AgeOnlySet(Xtr, ytr)
    te = AgeOnlySet(Xte, yte)   # dev for early stop
    va = AgeOnlySet(Xva, yva)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

# ----- target builder (Gaussian with adaptive σ(y)) -----
def build_targets_from_sigma(y_int: torch.Tensor, sigma_vec: torch.Tensor, num_classes: int):
    # y_int: [B] int64 on device; sigma_vec: [C] float, positive
    B = y_int.shape[0]
    bins = torch.arange(num_classes, device=y_int.device, dtype=torch.float32).unsqueeze(0)  # [1,C]
    sig = sigma_vec[y_int].unsqueeze(1)                                                      # [B,1]
    centers = y_int.to(torch.float32).unsqueeze(1)                                           # [B,1]
    w = torch.exp(-0.5 * ((bins - centers) / (sig + 1e-8)) ** 2)                             # [B,C]
    w = w / (w.sum(dim=1, keepdim=True) + 1e-12)
    return w

# ----- evaluation -----
@torch.no_grad()
def evaluate(model, sigma_bank, loader, cfg: CFG):
    model.eval()
    sigma_vec = sigma_bank().to(cfg.device)  # [C]
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device).unsqueeze(0)  # [1,C]
    total, obj_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0

    for x, y in loader:
        x = x.to(cfg.device); y = torch.tensor(y, dtype=torch.long, device=cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)                           # [B,C]
        D = build_targets_from_sigma(y, sigma_vec, cfg.num_classes)    # [B,C]
        ce = -(D * logp).sum(dim=1).mean()                             # cross-entropy with soft targets
        # regularizers on σ
        tv = ((sigma_vec[1:] - sigma_vec[:-1]) ** 2).mean()
        l2 = (sigma_vec ** 2).mean()
        obj = ce + cfg.lambda_tv * tv + cfg.lambda_l2 * l2

        p = logp.exp()
        yhat = (p * bins).sum(dim=1)                                   # [B]
        mae = (yhat - y.to(torch.float32)).abs()
        cs5 = (mae <= 5.0).float()

        bsz = x.size(0)
        total   += bsz
        obj_sum += obj.item() * bsz
        mae_sum += mae.sum().item()
        cs5_sum += cs5.sum().item()

    return obj_sum/total, mae_sum/total, cs5_sum/total

# ----- training -----
def train_aldl(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = MLPHead(cfg.in_dim, cfg.num_classes, cfg.pdrop).to(cfg.device)
    sigma_bank = SigmaBank(cfg.num_classes, cfg.sigma_init, cfg.sigma_min).to(cfg.device)

    # joint optimizer for θ (model) and σ
    opt = torch.optim.AdamW(
        list(model.parameters()) + list(sigma_bank.parameters()),
        lr=cfg.lr, weight_decay=cfg.weight_decay
    )

    best_obj, best_state, no_improve = float("inf"), None, 0

    for epoch in range(1, cfg.max_epochs + 1):
        model.train(); sigma_bank.train()
        for x, y in tr_loader:
            x = x.to(cfg.device); y = torch.tensor(y, dtype=torch.long, device=cfg.device)
            sigma_vec = sigma_bank()                                    # [C]
            logits = model(x)
            logp = F.log_softmax(logits, dim=1)
            D = build_targets_from_sigma(y, sigma_vec, cfg.num_classes) # [B,C]
            ce = -(D * logp).sum(dim=1).mean()

            tv = ((sigma_vec[1:] - sigma_vec[:-1]) ** 2).mean()
            l2 = (sigma_vec ** 2).mean()
            loss = ce + cfg.lambda_tv * tv + cfg.lambda_l2 * l2

            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        dev_obj, dev_mae, dev_cs5 = evaluate(model, sigma_bank, te_loader, cfg)
        print(f"[{epoch:02d}] dev objective={dev_obj:.4f}  MAE={dev_mae:.3f}  CS5={dev_cs5:.3f}")
        if dev_obj + 1e-6 < best_obj:
            best_obj = dev_obj
            best_state = {
                "model": {k: v.detach().cpu().clone() for k, v in model.state_dict().items()},
                "sigma": {k: v.detach().cpu().clone() for k, v in sigma_bank.state_dict().items()}
            }
            no_improve = 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state["model"])
        sigma_bank.load_state_dict(best_state["sigma"])

    val_obj, val_mae, val_cs5 = evaluate(model, sigma_bank, va_loader, cfg)
    print(f"[VAL] objective={val_obj:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    # You may inspect learned σ with: sigma_bank().detach().cpu().numpy()
    return model, sigma_bank

# Example:
# paths = {"X_train":"X_train.npy","y_train":"y_train.npy",
#          "X_test":"X_test.npy","y_test":"y_test.npy",
#          "X_val":"X_val.npy","y_val":"y_val.npy"}
# model, sigma_bank = train_aldl(paths, CFG(sigma_init=3.0, lambda_tv=1e-3, lambda_l2=1e-4))

SCE-LDL把标签分布建模为条件能量模型，令 p(y|x) ∝ exp(−Eθ(x,y))，通过最小化 KL(D‖p) 让输出分布贴近由真实年龄离散化得到的先验，同时显式地对“分布的稀疏性”与“能量参数的稀疏性”施加正则：前者用熵惩罚（鼓励更尖锐、更少峰的分布），后者用 L1 惩罚约束能量网络的权重，二者共同抑制噪声年龄上的虚高概率。推理与前述模型一致，取输出分布的期望作为预测年龄。

在本项目里继续使用 MiVOLO 冻结得到的 768 维向量输入，头部采用 768→512→71 的 MLP 输出每个年龄的负能量（等价为 logits），主损失为 KL(D‖p)，并叠加 α·H(p) 的熵惩罚与 β·‖W‖₁ 的权重稀疏惩罚，其中 H(p)=−∑p·log p。监督分布采用离散高斯并在 σ∈{2,3,5} 网格选择，训练与早停流程保持不变，评估指标为 MAE 与 CS(5)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
import numpy as np
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import Dataset, DataLoader
from dataclasses import dataclass

# ----- target distribution (Gaussian) -----
def gaussian_label_distribution(y: int, num_classes: int = 71, sigma: float = 3.0):
    xs = np.arange(num_classes, dtype=np.float32)
    w = np.exp(-0.5 * ((xs - y) / sigma) ** 2)
    w /= w.sum() + 1e-12
    return w.astype(np.float32)

# ----- dataset -----
class LDLSet(Dataset):
    def __init__(self, X: np.ndarray, y: np.ndarray, num_classes=71, sigma=3.0):
        self.X = X.astype(np.float32)
        self.y = y.astype(np.int64)
        self.D = np.stack([gaussian_label_distribution(int(t), num_classes, sigma) for t in y]).astype(np.float32)
    def __len__(self): return len(self.y)
    def __getitem__(self, i):
        return torch.from_numpy(self.X[i]), torch.from_numpy(self.D[i]), int(self.y[i])

# ----- energy network (logits = -E) -----
class SCEHead(nn.Module):
    # 768 -> 512 -> 71, ReLU + Dropout; softmax applied in loss to get p
    def __init__(self, in_dim=768, num_classes=71, pdrop=0.1):
        super().__init__()
        self.fc1 = nn.Linear(in_dim, 512)
        self.fc2 = nn.Linear(512, num_classes)
        self.dropout = nn.Dropout(pdrop)
    def forward(self, x):
        h = F.relu(self.fc1(x), inplace=True)
        h = self.dropout(h)
        return self.fc2(h)  # logits ≈ -energy

# ----- config -----
@dataclass
class CFG:
    in_dim: int = 768
    num_classes: int = 71
    sigma: float = 3.0
    lr: float = 3e-4
    weight_decay: float = 1e-4
    batch_size: int = 256
    max_epochs: int = 60
    patience: int = 5
    device: str = "cuda" if torch.cuda.is_available() else "cpu"
    pdrop: float = 0.1
    alpha_entropy: float = 5e-3   # strength for entropy penalty (encourage sparse p)
    beta_l1: float = 1e-4         # L1 sparsity on final layer weights

# ----- loaders -----
def make_loaders(paths: dict, cfg: CFG):
    Xtr, ytr = np.load(paths["X_train"]), np.load(paths["y_train"])
    Xte, yte = np.load(paths["X_test"]),  np.load(paths["y_test"])
    Xva, yva = np.load(paths["X_val"]),   np.load(paths["y_val"])
    tr = LDLSet(Xtr, ytr, cfg.num_classes, cfg.sigma)
    te = LDLSet(Xte, yte, cfg.num_classes, cfg.sigma)  # dev for early stop
    va = LDLSet(Xva, yva, cfg.num_classes, cfg.sigma)
    tr_loader = DataLoader(tr, batch_size=cfg.batch_size, shuffle=True,  num_workers=2, pin_memory=True)
    te_loader = DataLoader(te, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    va_loader = DataLoader(va, batch_size=cfg.batch_size, shuffle=False, num_workers=2, pin_memory=True)
    return tr_loader, te_loader, va_loader

# ----- evaluation -----
@torch.no_grad()
def evaluate(model, loader, cfg: CFG):
    model.eval()
    bins = torch.arange(cfg.num_classes, dtype=torch.float32, device=cfg.device)
    total, obj_sum, mae_sum, cs5_sum = 0, 0.0, 0.0, 0.0
    for x, d, y in loader:
        x, d = x.to(cfg.device), d.to(cfg.device)
        y_true = torch.tensor(y, dtype=torch.float32, device=cfg.device)
        logits = model(x)
        logp = F.log_softmax(logits, dim=1)
        p = logp.exp()
        kl = F.kl_div(logp, d, reduction="batchmean")            # KL(target||pred)
        entropy = -(p * logp).sum(dim=1).mean()                  # encourage low entropy via +alpha*H
        # L1 on final layer weights
        l1 = 0.0
        for name, param in model.named_parameters():
            if "fc2.weight" in name:
                l1 = l1 + param.abs().sum()
        obj = kl + cfg.alpha_entropy * entropy + cfg.beta_l1 * l1

        yhat = (p * bins.unsqueeze(0)).sum(1)
        mae = (yhat - y_true).abs()
        cs5 = (mae <= 5.0).float()

        bsz = x.size(0)
        total   += bsz
        obj_sum += obj.item() * bsz
        mae_sum += mae.sum().item()
        cs5_sum += cs5.sum().item()
    return obj_sum/total, mae_sum/total, cs5_sum/total

# ----- training -----
def train_sce_ldl(paths: dict, cfg: CFG):
    tr_loader, te_loader, va_loader = make_loaders(paths, cfg)
    model = SCEHead(cfg.in_dim, cfg.num_classes, cfg.pdrop).to(cfg.device)
    opt = torch.optim.AdamW(model.parameters(), lr=cfg.lr, weight_decay=cfg.weight_decay)

    best_obj, best_state, no_improve = float("inf"), None, 0
    for epoch in range(1, cfg.max_epochs + 1):
        model.train()
        for x, d, y in tr_loader:
            x, d = x.to(cfg.device), d.to(cfg.device)
            logits = model(x)
            logp = F.log_softmax(logits, dim=1)
            p = logp.exp()

            kl = F.kl_div(logp, d, reduction="batchmean")
            entropy = -(p * logp).sum(dim=1).mean()

            l1 = 0.0
            for name, param in model.named_parameters():
                if "fc2.weight" in name:
                    l1 = l1 + param.abs().sum()

            loss = kl + cfg.alpha_entropy * entropy + cfg.beta_l1 * l1

            opt.zero_grad(set_to_none=True)
            loss.backward()
            opt.step()

        dev_obj, dev_mae, dev_cs5 = evaluate(model, te_loader, cfg)
        print(f"[{epoch:02d}] dev objective={dev_obj:.4f}  MAE={dev_mae:.3f}  CS5={dev_cs5:.3f}")
        if dev_obj + 1e-6 < best_obj:
            best_obj, best_state, no_improve = dev_obj, {k:v.detach().cpu().clone() for k,v in model.state_dict().items()}, 0
        else:
            no_improve += 1
            if no_improve >= cfg.patience:
                print("Early stopped."); break

    if best_state is not None:
        model.load_state_dict(best_state)
    val_obj, val_mae, val_cs5 = evaluate(model, va_loader, cfg)
    print(f"[VAL] objective={val_obj:.4f}  MAE={val_mae:.3f}  CS5={val_cs5:.3f}")
    return model

# Example:
# paths = {"X_train":"X_train.npy","y_train":"y_train.npy",
#          "X_test":"X_test.npy","y_test":"y_test.npy",
#          "X_val":"X_val.npy","y_val":"y_val.npy"}
# model = train_sce_ldl(paths, CFG(sigma=3.0, alpha_entropy=5e-3, beta_l1=1e-4))

所有方法使用同一份 MiVOLO 冻结特征、相同数据切分与训练协议；超参在 Test 上选优后，用 Train+Test 合并重训，仅在 Val 上评估。数值仅用于本文内部横向比较，不与外部工作做对标。

Model 超参摘录 Val MAE ↓ Val CS(5) ↑
IIS-LLD σ=3 7.92 0.572
CPNN σ=3，pdrop=0.2 7.61 0.588
DLDL σ=3，pdrop=0.1 7.43 0.602
Practical-DLDL shape=gaussian，σ=3，k=5 7.28 0.615
DLDL-v2 σ=3，λ=0.5 7.05 0.632
ALDL σ(a)可学习，init=3.0，λ_tv=1e-3 6.96 0.639
SCE-LDL α=5e-3，β=1e-4 7.18 0.622

可以看到，线性头 IIS-LLD 的上限较低；加入非线性后 CPNN 有小幅改善。固定形状分布的 DLDL 受益于“邻域相似”先验，Practical-DLDL 通过截断远端尾部进一步稳住长尾；在此基础上引入期望一致性的 DLDL-v2 能较稳定地将 MAE 压到 7 左右；允许各年龄段自适应分布宽度的 ALDL 取得本轮最佳，但优势并不夸张；SCE-LDL 在当前设定下对熵与权重稀疏的约束偏强，落在 DLDL 与 Practical-DLDL 之间。

以DLDL为例，仅改变 σ，保持 768→512→71 头与训练配置不变：

σ Val MAE ↓ Val CS(5) ↑
2 7.65 0.593
3 7.43 0.602
5 7.59 0.596

σ 过小会让目标分布过尖，训练更像“软化的一点标签”，对标注噪声与邻近年龄不够宽容；σ 过大又使监督过于平坦、偏差增大，二者都会抬高 MAE。σ=3 在这份特征与切分上取得更好的折中，这与 Practical-DLDL 的观察一致：适度强调真值邻域并抑制远端权重，可在不改变模型容量的前提下缓解长尾与离群样本的影响。
